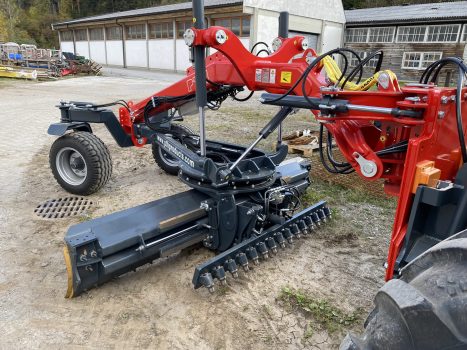

PTH Grader Front

The ideal grader for the best results with more maneuverability, flexibility and comfort when front-mounted on tractors, construction machinery and other vehicles.

The front-mounted PTH grader is the ideal alternative to the motor grader and is already available for tractors and other machines from 80 hp or 2 t.

With its fully hydraulic controls and front attachment, the PTH grader combines the advantages of a motor grader with versatility and unrivaled maneuverability.

Professional grader with front attachment

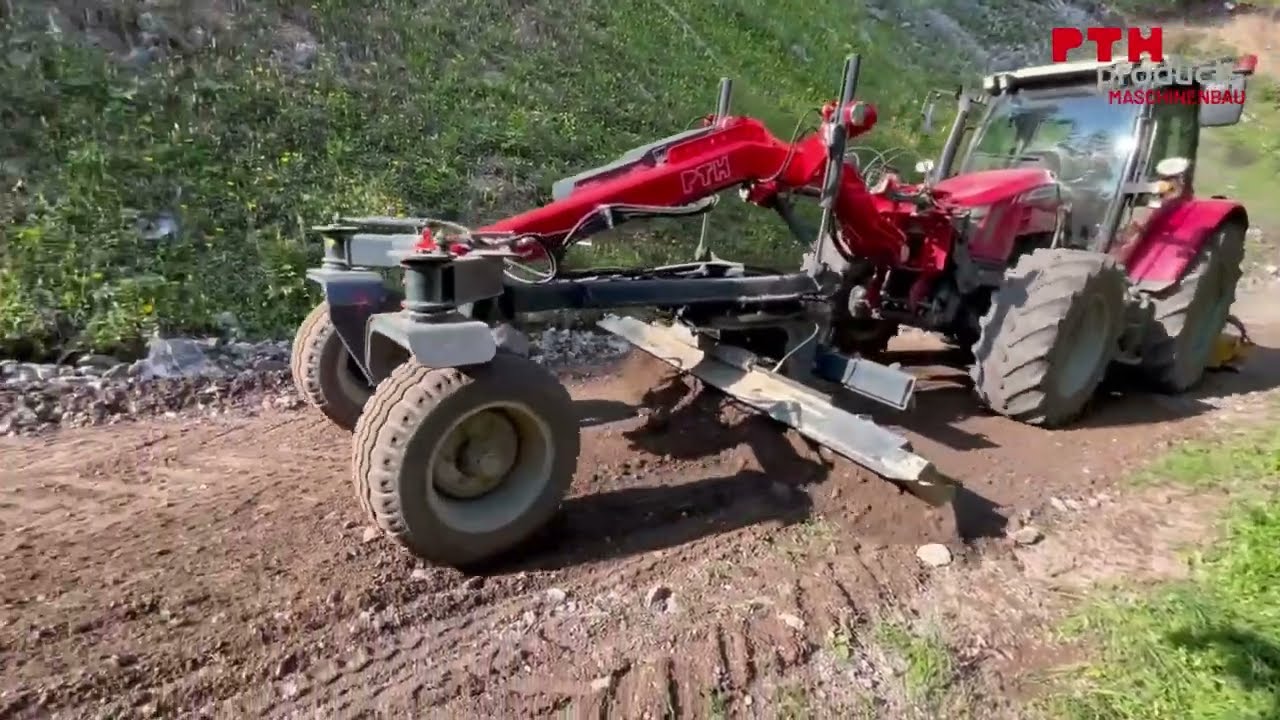

The front attachment of the grader allows the rear of the carrier vehicle to be used for other equipment, such as a plate compactor, in order to be able to both grade and compact in a single pass.
This brings greater efficiency to professional road construction, the renovation of paths and roads and also verge maintenance.

Installation is quick and easy thanks to a quick coupling system. The grader is easily transported with other attachments on a low-loader.

Road builders, contractors, forestry and farmers

Areas of application

Road construction & road maintenance
Verge maintenance
construction site

TECHNICAL DATA

The robust front carriage of the PTH Grader Front is made of engineering steel with excellent fatigue strength. In addition to the suitability of the slewing ring for the heaviest loads, the cutting angle adjustment of the blade can be set extremely precisely.

The functions of the PTH grader in front attachment are identical to those of a motor grader.

Extensive standard and optional equipment such as the folding ripper bar, the option of laser control or side discharge plates, optional hydraulic steering of the axle and much more make the PTH Grader Front a uniquely efficient grader attachment.

Technical Data Speed Grader "Speedy"
Required carrier vehicle
from 6 t
from 2 t
Power requirement
from approx. 130 hp
from approx. 80 hp
Dead weight
approx. 4,400 kg
approx. 2,100 kg
Required flow rate
approx. 40 l at 210 bar
Total length
4,800 mm
4,000 mm
Coulter length
3,000 I 3,600 mm
3,000 mm
Turning width shield
+/- 65 °
+/- 50 °
Shield shift left/right
600 mm
450 mm
Maximum slope angle left/right
60 °
47 °
Max. stroke above subgrade
550 mm
270 mm
max. digging depth
300 mm
290 mm

Standard equipment

Stable full frame construction

Strong front axle design

Wheels 360° rotatable

Double ball bearing slewing ring

Load-sensing hydraulic control block

Articulated joint with 45° steering angle

Hydraulic blade tilt function

Replaceable wear rail

Coulter wear protection on the side

CAN bus control with joystick

12 or 24 V voltage

Hydraulically adjustable feed flap

Special equipment

  • HYDRAULIC STEERING AID

  • FRONT SHIELD

    for Speed Grader model

  • OUTLET SHEET left & right

  • HYDRAULIC DISCHARGE PLATE

  • ADJUSTMENT FOR SYSTEM TRIMBLE © and LEICA ©

  • WORK LIGHTING

  • ADAPTER PLATE FOR CARRIER VEHICLE

  • CUTTING RAIL fixed & hydraulic

  • SPECIAL PAINT FINISH IN RAL COLORS
