Dozer Blade
The alternative to bulldozers, dozers or crawler tractors. Easy to attach to tractors and other implement carriers.
The PTH Dozer Blade is attached to the lifting gear of a tractor by means of a 3-point hitch or to other implement carriers (e.g. excavators, wheel loaders, trucks, ...) by means of an individual frame construction or quick change.
Built for heavy-duty pushing work
The PTH Dozer Blade was developed with the know-how of over 25 years of road construction for particularly heavy-duty applications.
The areas of application range from heavy-duty pushing, material removal and installation to surface leveling or grading work.
In agriculture and forestry, the PTH Dozer Blade can be a valuable addition for heavy-duty pushing work that is not possible with conventional attachments.
Earthworks companies, contractors in road and path construction, forestry and agriculture
Areas of application
TECHNICAL DATA
The unique technology of the PTH Dozer Blade makes it possible to quickly convert a standard tractor or other implement carrier into a crawler tractor.
The PTH Dozer Blade is manufactured individually according to customer requirements. A superstructure design is possible on almost all implement carriers.
| Technical data | Dozer Blade | |||
|---|---|---|---|---|
|
Required carrier vehicle |
|
|
|
from 6 t |
|
Power requirement |
|
|
|
from approx. 150 hp |
|
Required hydraulic power |
|
|
|
from approx. 40l/min at 210 bar |
|
Dead weight |
|
|
|
from approx. 1,500 kg |
|
Total length |
|
|
|
according to customer requirements |
|
Coulter length |
|
|
|
according to customer requirements approx. 2,000 - 4,000 mm |
Standard equipment
All functions hydraulically adjustable
Control via hydraulics of the carrier vehicle
Replaceable wear rail
Sturdy frame construction
Special equipment

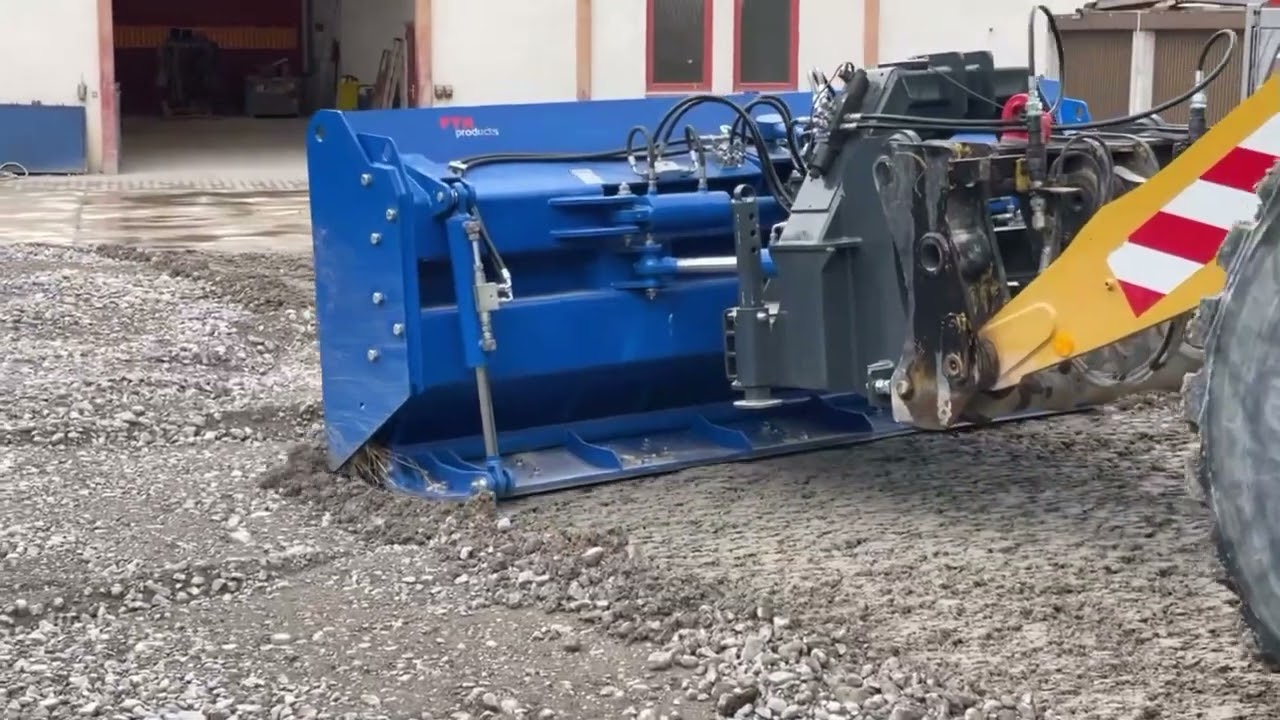

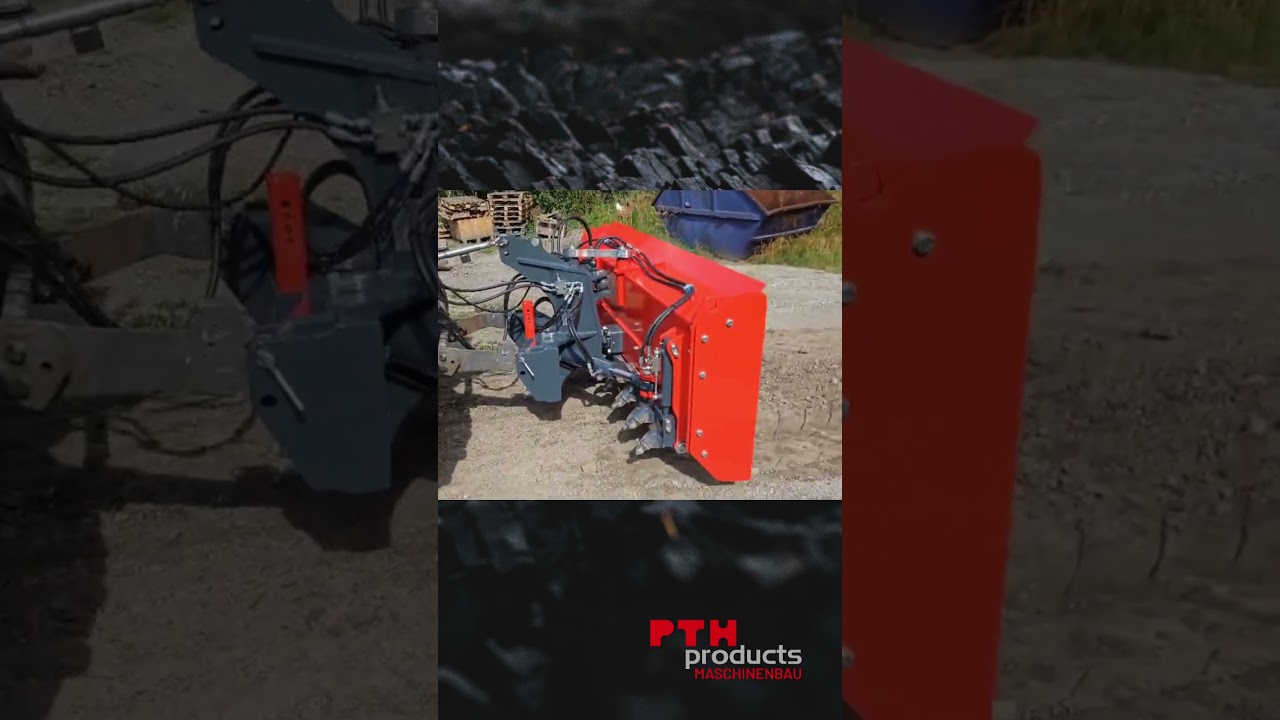

PTH Dozer Blade
0:39
3:20
0:59
4:46
4:54
0:39
Frequently Asked Questions About the PTH Dozer Blade
What is the difference between a dozer blade and a grader blade?
A dozer blade pushes material like a caterpillar—for spreading, backfilling, and rough grading. A grading blade is used, for example, on an excavator and is designed for finer grading and leveling of surfaces. Both are available as attachments, so no separate specialized vehicle is required.
More on this: DozerBlade · Leveller
What can the PTH Dozer Blade do?
The Dozer Blade turns tractors and implement carriers into dozers. Blade capacity up to 4.5 m³, blade length 2,000-4,000 mm. Fully hydraulically adjustable with optional laser control for precise grading.
Which carrier vehicles are compatible with the Dozer Blade?
Tractors and implement carriers from 150 hp and at least 6 t tare weight. The Dozer Blade weighs approx. 1,500 kg and requires a hydraulic pressure of 210 bar.
Is the Dozer Blade available with laser control?
Yes, laser control for precise, automatic grading is available as an option. This allows exact height profiles and gradients to be created on paths and surfaces.
What applications is the Dozer Blade suitable for?
Road construction, grading work, material shifting, slope profiling and snow removal. The Dozer Blade complements the PTH process chain after the crusher and grader.
