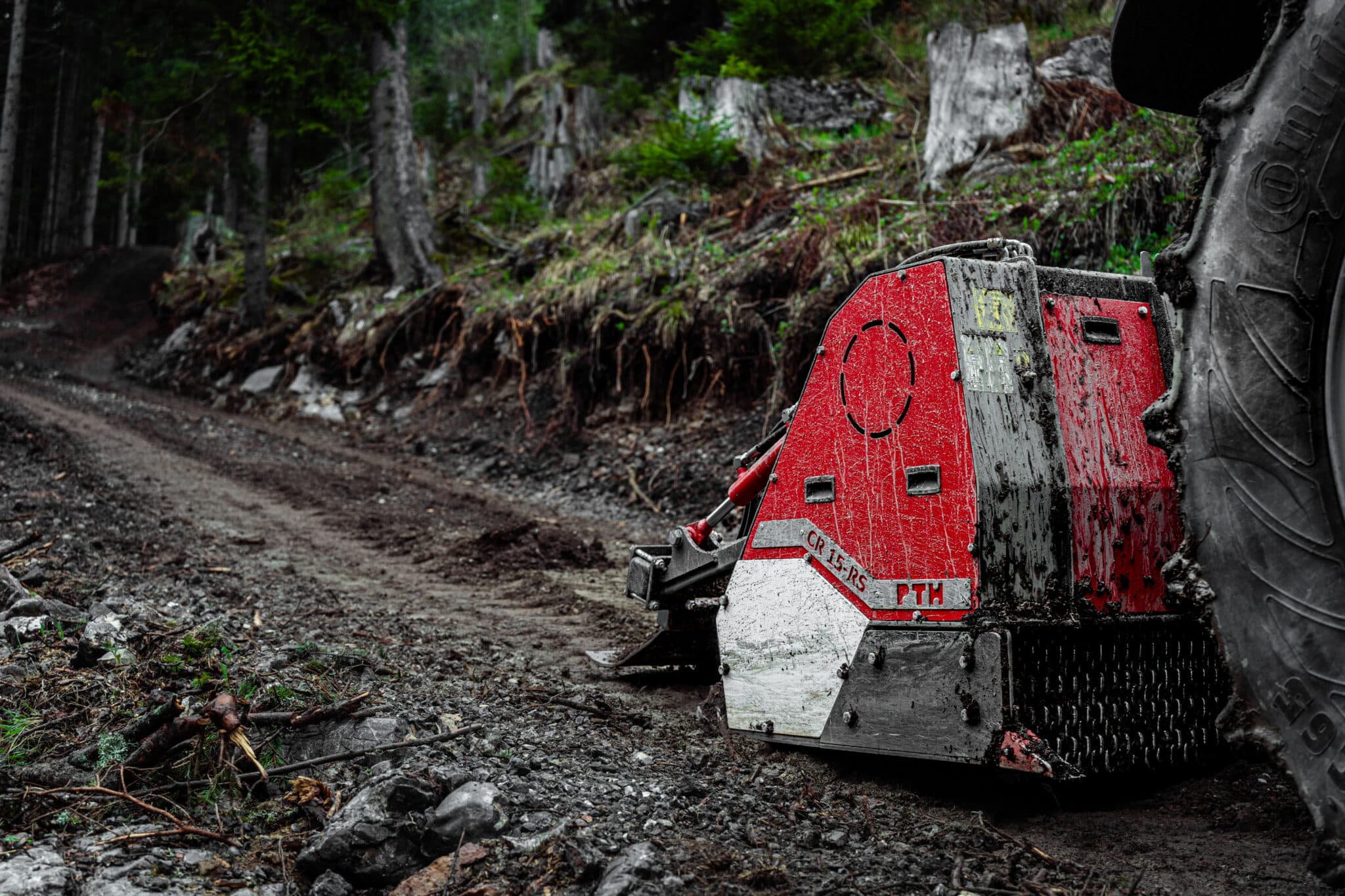

PTH Crusher

The ultimate stone crusher with unique PTH rotor technology for use in particularly hard rock and demanding soils.

The PTH Crusher has been specially designed for hard stone such as basalt, gneiss, granite and particularly demanding floors or floor coverings.
The technology of the rock crusher is unrivaled in terms of crushing performance, throughput and crushing results.

Maximum throughput and best crushing results

The PTH Crusher models are individually designed to meet the requirements of professional customers. The underlying technology is that of a crusher instead of a milling machine.

The particular strength of the PTH Crusher is its continuous use in particularly hard rock with minimal wear on the working tool. The compressive strength of the rock can be up to 150 N/mm2.

Depending on the model and equipment, the PTH Crusher crush rock material with an edge length of up to 500 mm into a grain size of up to 20 mm.

Depending on the model, the RS version of the PTH Crusher (optional equipment) can mill asphalt surfaces up to 110 mm without prior scarifying.

Areas of application

Road & path construction, construction companies, contractors, agriculture

Road construction & road maintenance
Recultivation and land reclamation
Processing of particularly hard rock

TECHNICAL DATA

The particularly solid construction and use of the hardest materials make the PTH Crusher a unique tool in terms of productivity, wear minimization and durability.

The unique PTH rotor technology is characterized, among other things, by special rotor protection for minimized wear on the rotor and tool holders as well as by the full armouring of the crushing chamber.

All wear parts of the PTH Crusher are bolted and therefore easy to replace, even directly on the construction site. This minimizes cost-intensive maintenance times.

The PTH Crusher is driven by high-performance V-belts fitted on both sides. This increases working comfort and at the same time minimizes the high maintenance costs of a conventional gearbox.

Depending on the model, up to 3 adjustable crushing stages are available for individual fine-tuning of the crushing result.

Technical data 200 250 2000 2500
Number of tools pcs.
24
32
24
32
Power requirement in hp
140-220
160-300
200-300
250-500
PTO rpm
540 | 750 | 1.000
Drive on both sides
5 high-performance belts each
6 high-performance belts each
Dead weight
approx. 3,800kg
approx. 4.800kg
approx. 5.000kg
approx. 5,900kg
Rotor width
1.500mm
2.000mm
1.500mm
2.000mm
Working width
2.000mm
2,500mm
2.000mm
2,500mm
Total width
2.100mm
2.600mm
2.100mm
2,650mm
Working depth
max. 250mm
max. 350mm
Theoretical throughput / h
up to 450 m³
up to 600m³
up to 450 m³
up to 700m³
Crushing stage

hydraulically adjustable 10-70mm

Standard equipment

Carbide-tipped, stationary special tools

Internal armoring with 15 mm HARDOX, replaceable

PTH rotor system

Gearbox with integrated freewheel

1st crushing stage hydraulically adjustable

Hydraulic tailgate

Three-point mounting KAT 3

Integrated toolbox

Special equipment

  • RS VERSION - PROTRUDING ROTOR

  • WEAR PROTECTION ON THE LID

  • 1. BREAKING STEP WITH 3 HARD METAL COUNTERBARS (4 on model 250/2500)

  • 2. BREAKING STEP WITH 3 PIECES OF HARDOX RAILS ON THE COVER (4 for model 250/2500)

  • 3. BREAKING STEP WITH 3 PIECES OF HARDOX RAILS ON THE COVER (4 for model 250/2500)

  • FOREST FRAME

  • HYDRAULICALLY ADJUSTABLE SUPPORT ROLLER

  • SPECIAL ROTOR WEAR PROTECTION

  • "DOUBLE TOOLS" SYSTEM FOR FINER CRUSHING RESULTS

  • HYDRAULICALLY ADJUSTABLE DOZER BLADE

  • LED LIGHTING

  • SPECIAL PAINT FINISH IN RAL COLORS
