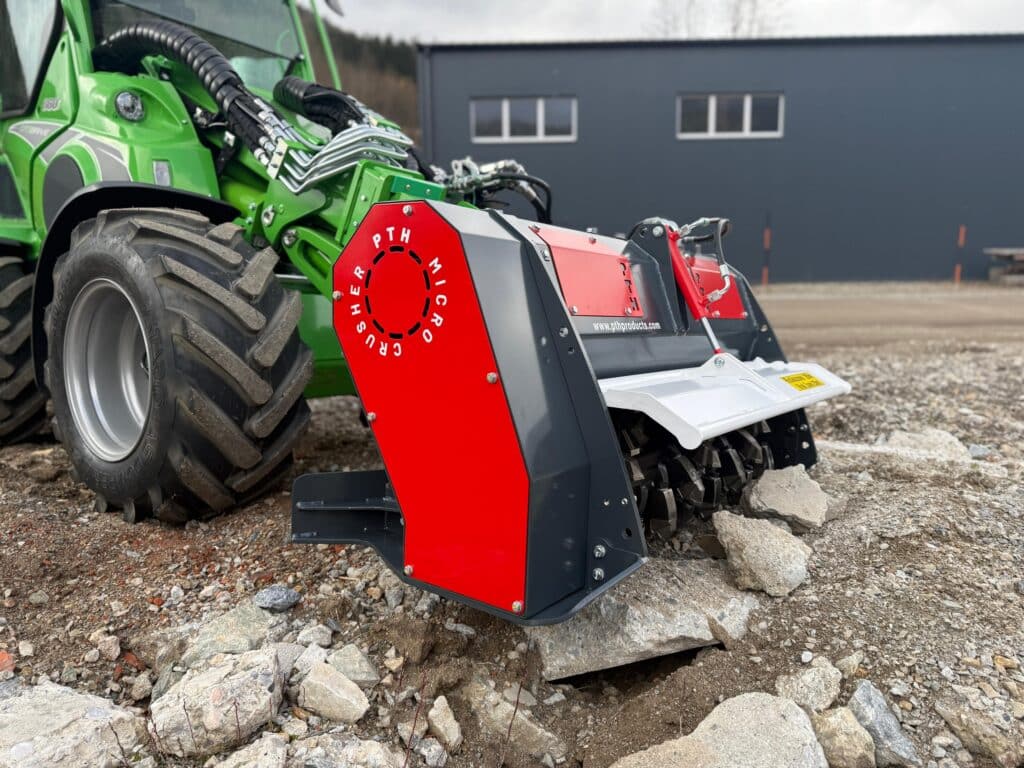

PTH Micro Crusher hydraulic
The PTH Micro Crusher hydraulic is a powerful combination of stone cutter, forestry cutter and mulcher, especially for small tractors and implement carriers with hydraulic drive from 70 l/min and 220 bar.
The PTH MicroCrusher can be used for a wide range of applications, such as crushing and milling stone, forestry mulching and deep milling of surfaces, removing rootstocks and tree stumps, path and green area renovation or work in orchards and vineyards.
MILLING & TILLING with one device !
Unique in its segment, the PTH MicroCrusher offers a working depth of up to 15 cm, even in stone! Thanks to its mechanically adjustable counterblow bar, the desired crushing and milling result can be set individually.
The PTH MicroCrusher mechanically removes and crushes roots, weeds and stones, for example, without pulling the chassis into the ground.
The PTH MicroCrusher hydraulic is available in working widths of 1150 mm and 1400 mm. Our own model series for excavator attachment and for road construction in rough terrain, such as MTB trails, make the PTH MicroCrusher the most individual model from PTH Products.
Areas of application
GaLa construction companies, road construction, municipal, nurseries, viticulture & fruit growing, agriculture
TECHNICAL DATA
The technology of the PTH MicroCrusher originates from the large PTH stone crushers and cutters. Its construction is therefore much more solid and designed for tougher tasks than conventional mulchers and cutters from the forestry sector.
The drive with high-performance belts (6 pcs.) in the PTH Micro Crusher ensures greater crushing power and better transmission of the carrier's hydraulic power.
The special PTH rotor technology with replaceable internal armoring and overlapping tool arrangement make the machine considerably easier to maintain and more durable. The comparatively minimized wear distinguishes the machine from conventional forestry cutters and mulchers.
| Technical data | 1150 | 1400 | |
|---|---|---|---|
|
Number of tools pcs. |
|
40 |
48 |
|
Power requirement min. liter |
|
35-75 |
45-75 |
|
Pressure min. bar |
|
220-360 |
220-360 |
|
Drive on one side |
6 High-performance V-belts |
||
|
Dead weight |
|
approx. 5600 kg |
approx. 570 kg |
|
Working width |
|
1.150mm |
1.400mm |
|
Total width |
|
1,370 mm |
1,599 mm |
|
Working depth |
maximum 150 mm |
||
|
Crushing stage |
made of Hardox mechanically adjustable |
||
Standard equipment
Carbide-tipped, stationary special tools
FORESTRY, STONE OR UNIVERSAL TOOLS
Inner armor made of 10 mm HARDOX, replaceable
Rotor with overlapping tool arrangement
Crushing and mulching function
Hydraulic tailgate
Special equipment
