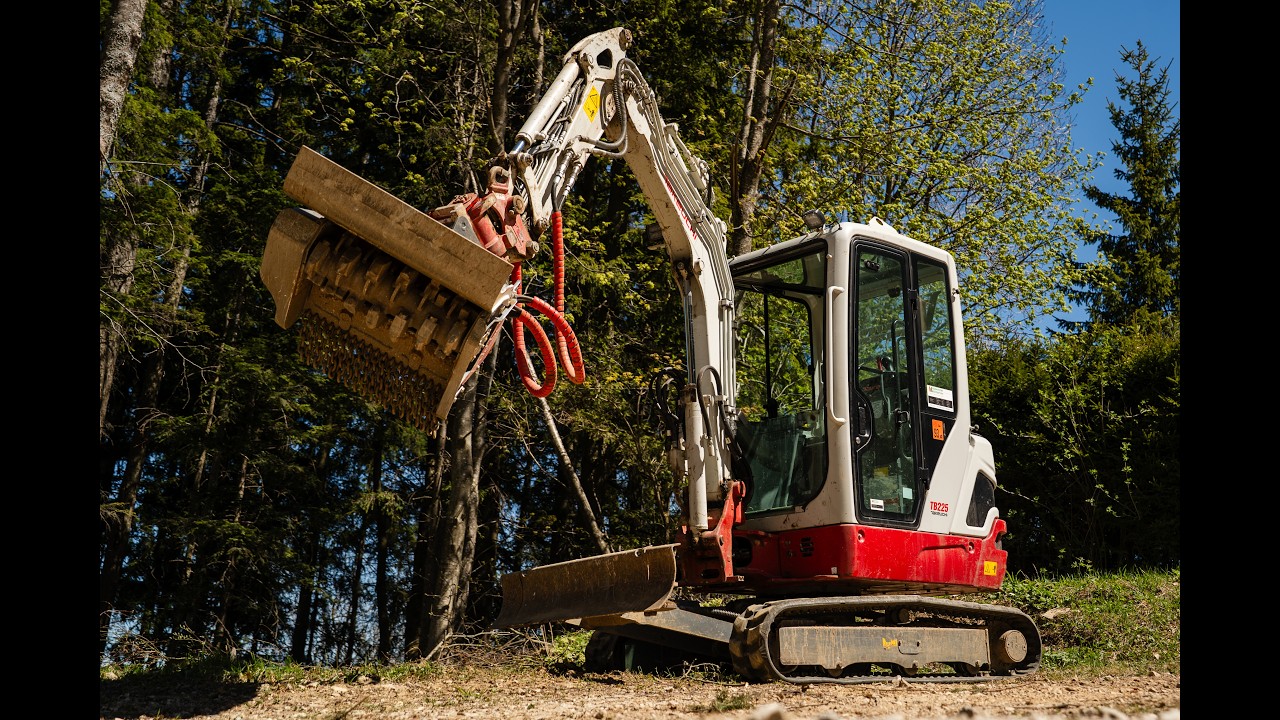

PTH Excavator Crusher EC-S
PTH EC-S
Mulcher, cutter & stone crusher for excavators from 2-5 t
Stone crusher, stone cutter and forestry cutter in one device.
Designed for work in path construction, trail construction and renovation, municipal applications, embankments, gardening and landscaping and much more.
Special features: Working depth up to 6 cm, optional grading bucket (excavator bucket) or universal flap with ripper plate for secondary shredding of shrubs and wood.
More application options for the mini excavator
Get more out of your mini excavator!
Mini excavators are available almost everywhere - but until now there has been no attachment that combines a rock crusher, milling machine and mulcher in this class. The EC-S closes precisely this gap: Crushing, milling and mulching and even leveling or moving material with just one machine.
For versatile applications from Trail building from path maintenance to embankment and verge maintenance. Compact on the excavator, maximum results - the mini excavator becomes a real multifunctional machine.
For gardening and landscaping, service providers, farmers and foresters, local authorities and trail parks.
Areas of application
TECHNICAL DATA
The EC-S not only impresses with its performance, but above all with its sophisticated features:
From the Universal flap with integrated shredding plate for effective secondary shredding of shrubs, roots and branches up to the Levelling bucket, which enables material to be distributed and, after milling, precise leveling without the need to change equipment.
The protruding rotor operates below frame level and thus achieves a Milling depth of approx. 6 cm - even in stony material. This means real milling into the soil instead of superficial mulching and ensures a clean, sustainable result.
The Bitelimiter technology of the large forestry milling machines also recommends the machine for forestry use.
Note: The Key technical data and the Data sheet incl. technical drawings (PDF) can be found directly below this section.
Data sheet
Technical data EC-S 600 (Tools, delivery rate, pressure, drive, weight, working/total width, working depth, crushing stage).
| Technical data | EC-S 600 | |||
|---|---|---|---|---|
|
Number of tools Piece |
|
|
18 |
|
|
Required flow rate |
|
|
from 50 l/min. |
|
|
Pressure |
|
|
from 220 bar |
|
|
Drive |
|
|
single-sided with 5 high-performance V-belts |
|
|
Dead weight |
|
|
approx. 300 kg |
|
|
Working width |
|
|
600 mm |
|
|
Total width |
|
|
775 mm |
|
|
Working depth |
|
|
max. 60 mm |
|
|
Crushing stage |
|
|
made of HARDOX mechanically adjustable |
|
Standard equipment
Carbide-tipped, stationary special tools
Forestry tiller, stone crusher or universal version
Inner armor made of 10 mm HARDOX, replaceable
Rotor with overlapping tool arrangement
Low wear on the tool holders
Crushing and mulching function
Hydraulically adjustable discharge flap
Bitelimiter technology
Carbide-tipped special edge tools
Special equipment
PTH ExcavatorCrusher EC-L
0:50
FAQ EC-S
Which excavator class is ideal?
The EC-S is designed for 2-5 tons. We check the specific machine in advance.
Does this also work in very hard material?
Yes, the EC-S is also designed for rock; the choice of tool depends on the substrate.
What hydraulic values do I need?
The required l/min and bar depend on the model. We adjust the values to the existing hydraulics.
What is the EC-S special?
Road construction, cycle paths and hiking trails, verges and material processing where the mini-excavator is available.
